2008 MHA Annual Meeting

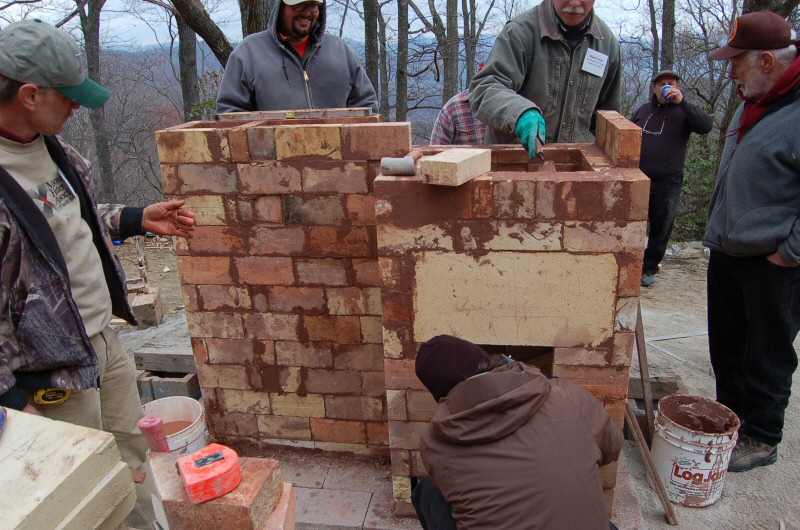

Double Bell Heater Workshop

with Igor Kuznetsov and Alex Chernov

Note: A complete set of assembly drawings is available in The MHA Heater Plans Portfolio

The heater is designed to be top vented by connecting it to a stainless steel insulated chimney. Such chimney should be attached directly
to the core, and provisions in the facing should be made to allow for some chimney movement through the capping slabs/stones.
It is also possible to connect the heater to a free standing masonry chimney. The possible connection point is marked on the drawings.

Enjoying the warmth of the heater on a chilly evening.

Note: A complete set of assembly drawings, 37 pages, including

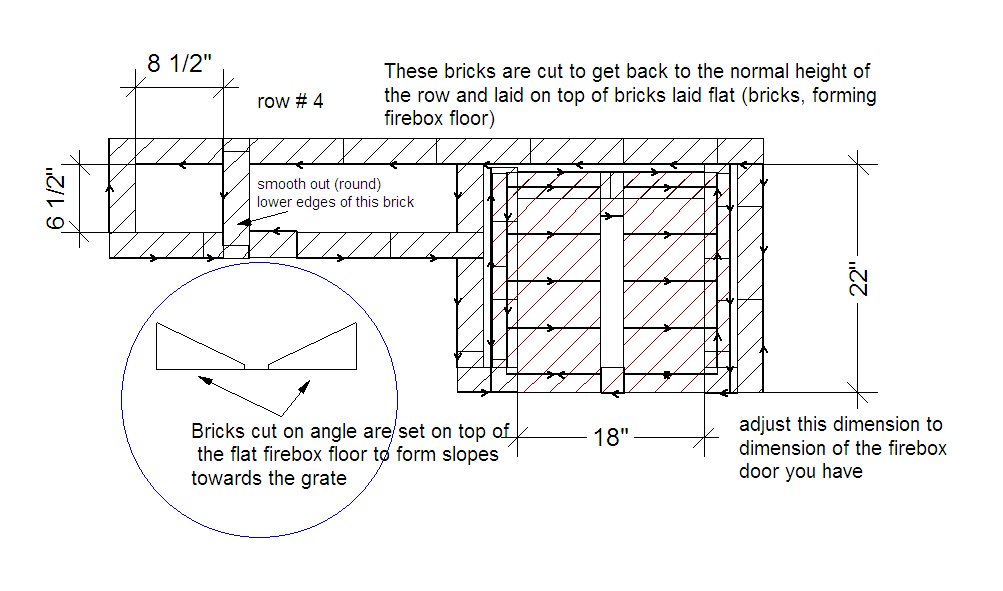

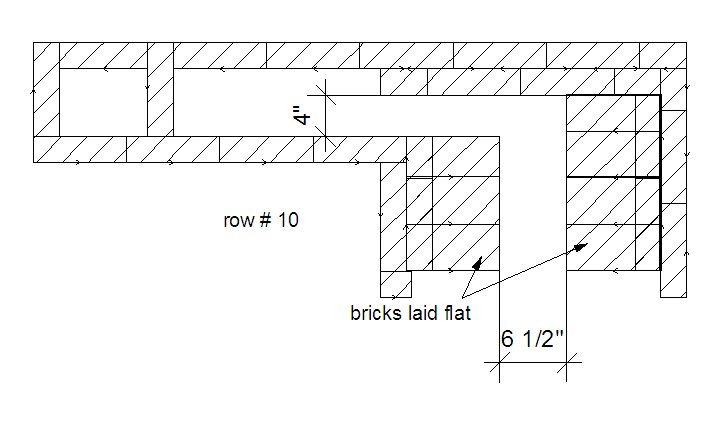

• course by course plan drawings
• course-by-course 3-D drawings
• 3-D viewsand sections,
• material list

is available in The MHA Heater Plans Portfolio

• Contraflow hands on
• Geodesic oven hands on
• Pat Manley 4 hr oven
• Clay cookstove virtual hands on
• Soapstone facing demo
• Pizza party
