Steve Bushway sent in these photos from his recent trip to Sweden.

Captions by John Fisher
Bake Oven by John Fisher

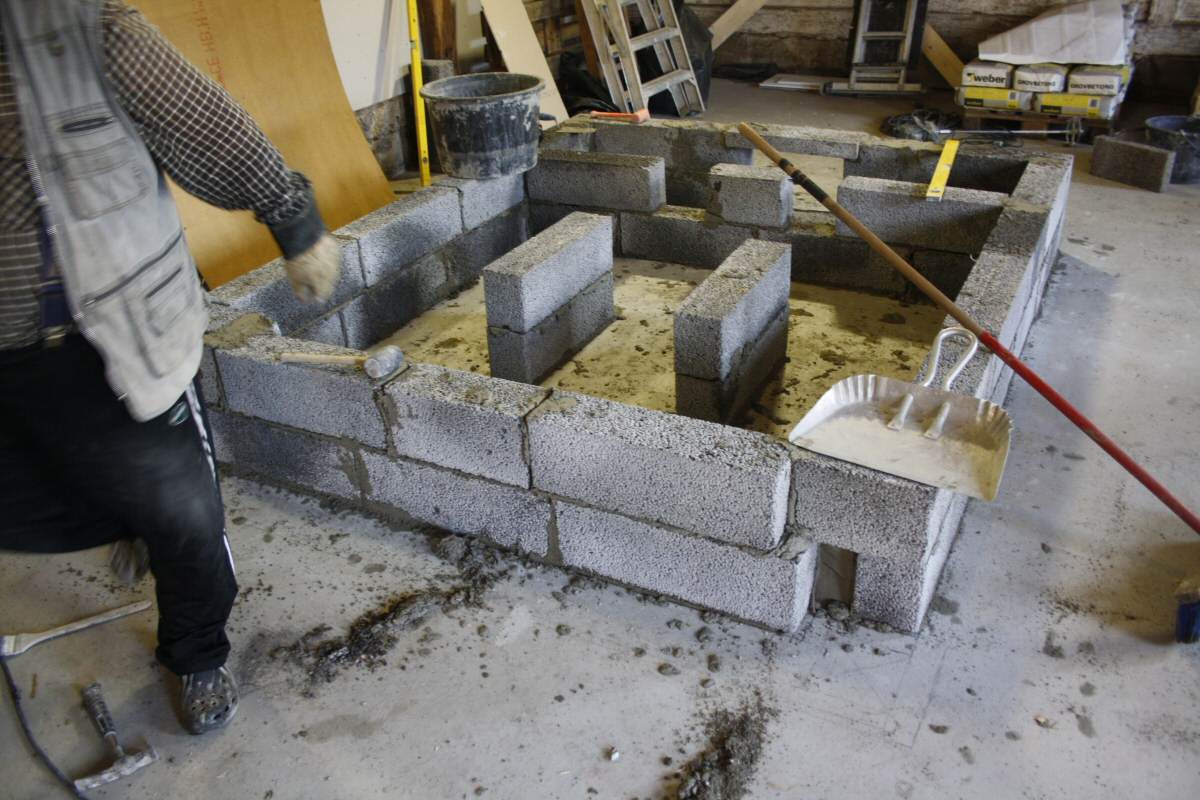

 The base is built with leca blocks 15 x 20 x 60 centimeters.

Bake Oven by John Fisher

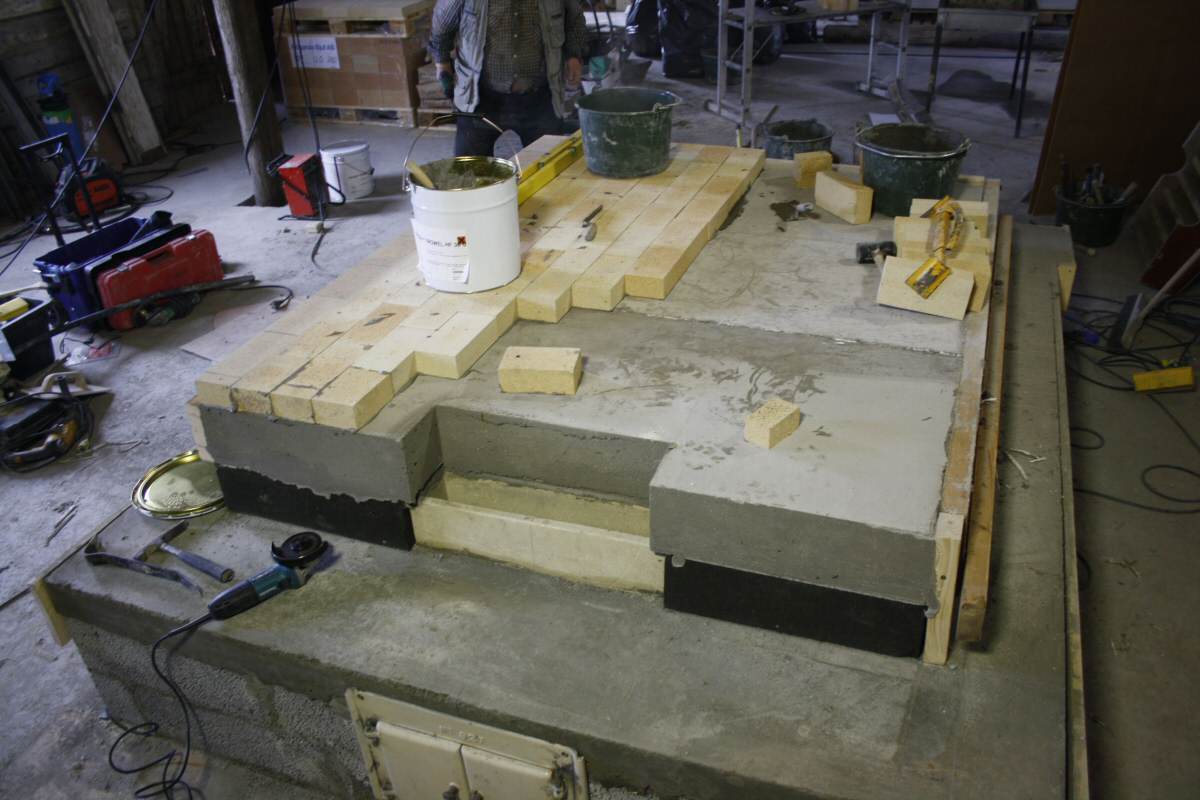

Concrete slab, foam glass, refractory slab, firebrick (no butter in the head joints except at he perimeter)

Bake Oven by John Fisher

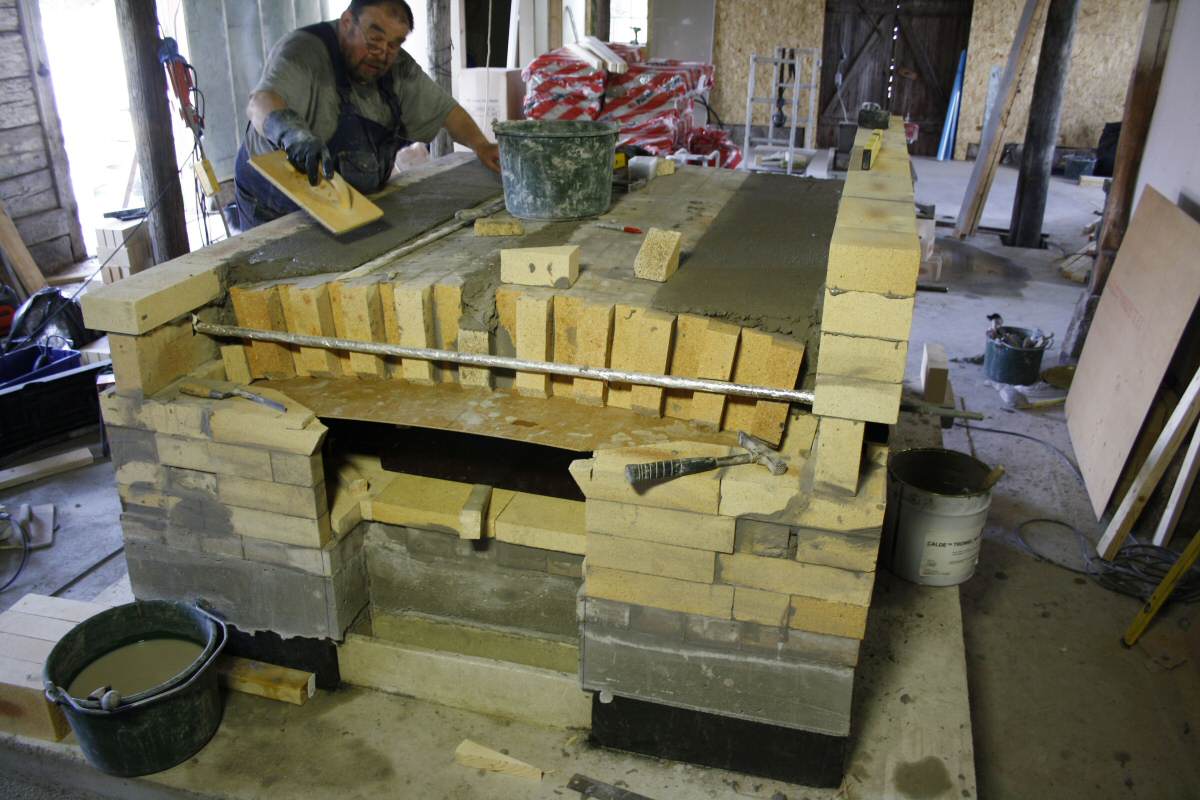

Jiri Repa prepares the plane for the second hearth.

Bake Oven by John Fisher

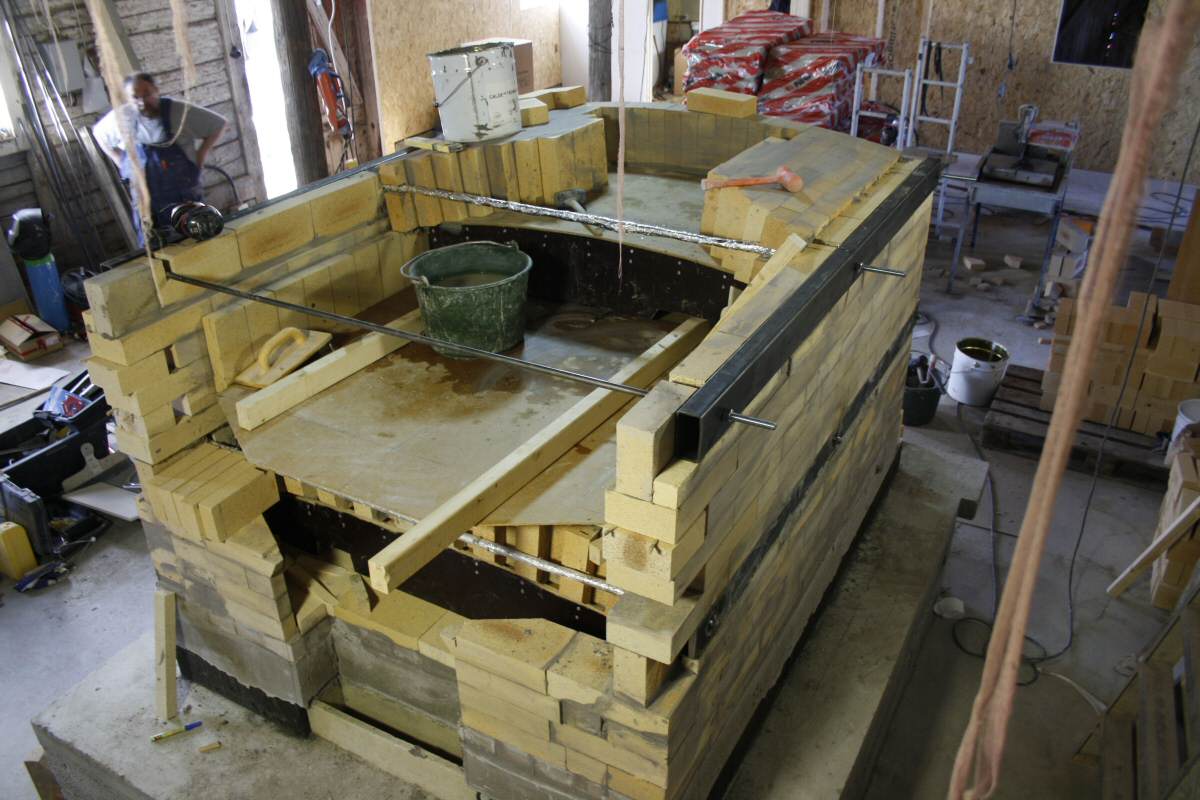

Second vault underway with exit hole defined. Long two-by-fours with tapered ends hold up
   the vault form.

Bake Oven by John Fisher

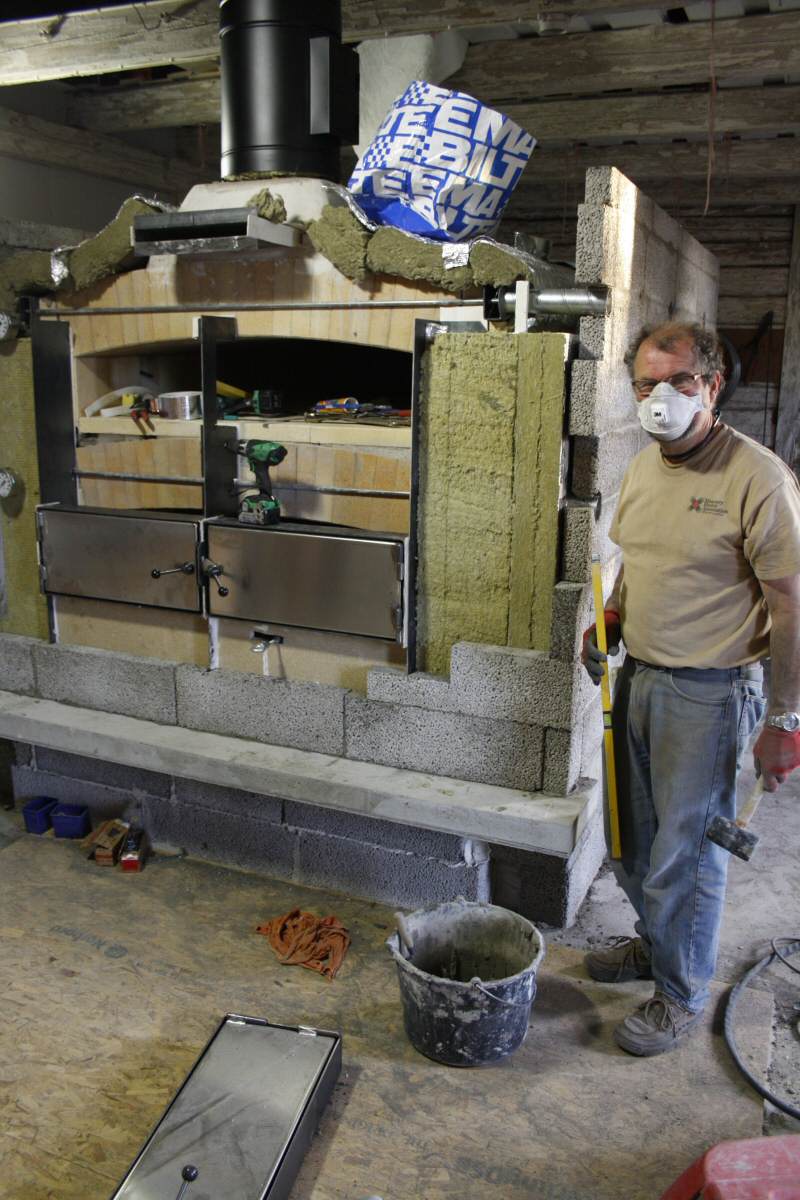

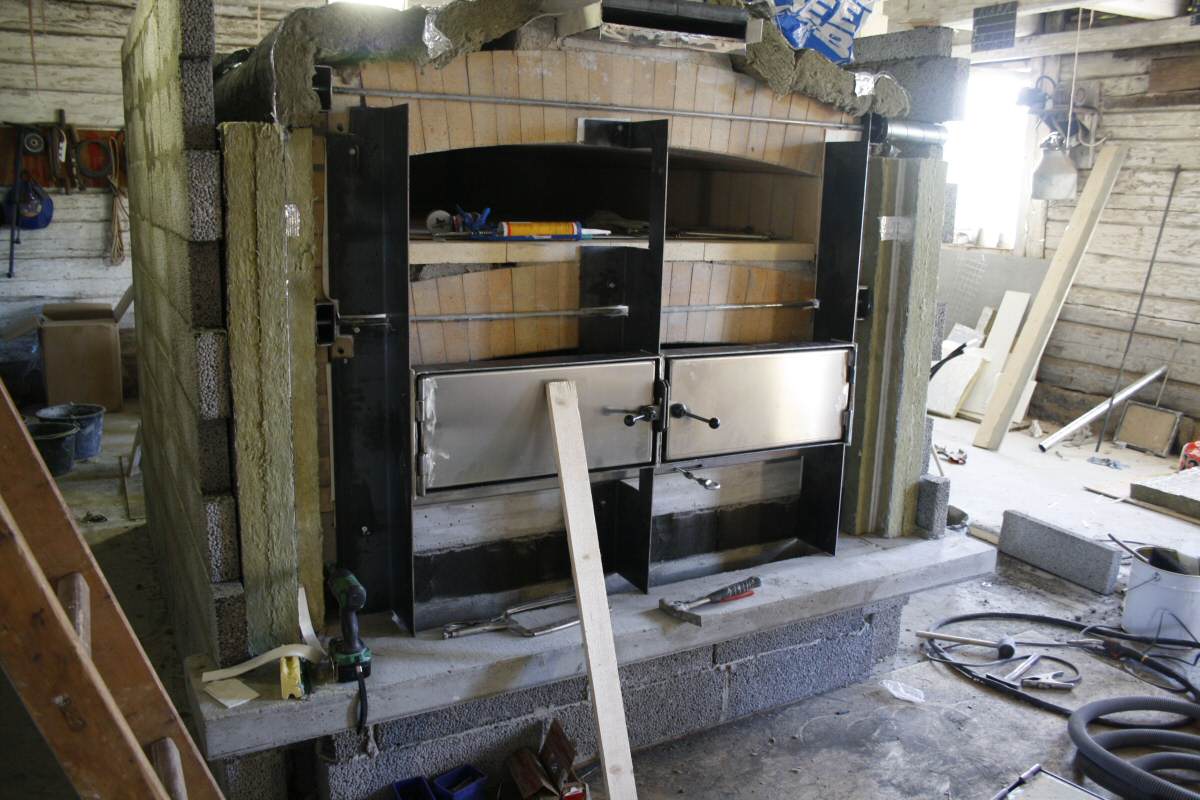

The core is finished. Insulation on the sides is finished. Insulation on the top is started.
   Shut-off damper is visible. You can also see the door system with a slot under it for
   primary air and a louvre handle to control it. Foam glass is visible in between the slabs at
   the bottom. The steel frame is visible; the rods are welded on the left and threaded on the
    right. You can see the tube on the right top that contains the scarf nut. That keeps the
    insulation tidy around the nut so you can draw it up if necessary. But we don't want just
    anyody adjusting those nuts, so we do a thin parge over the holes on the fasade with a
    faint marker so we know where they are.


Bake Oven by John Fisher

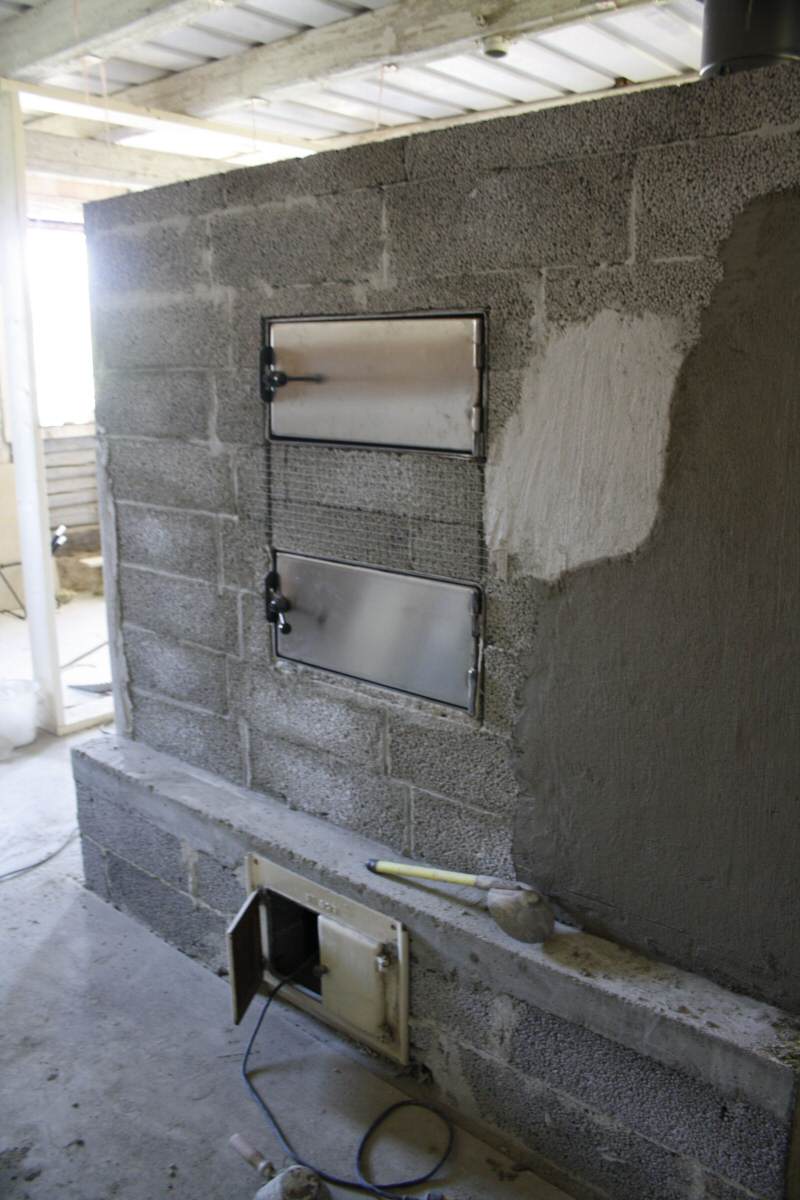

leca block forms the outer shell (7cm thick). it is cut around the doors to leave room for a
    brick detail.

Bake Oven by John Fisher

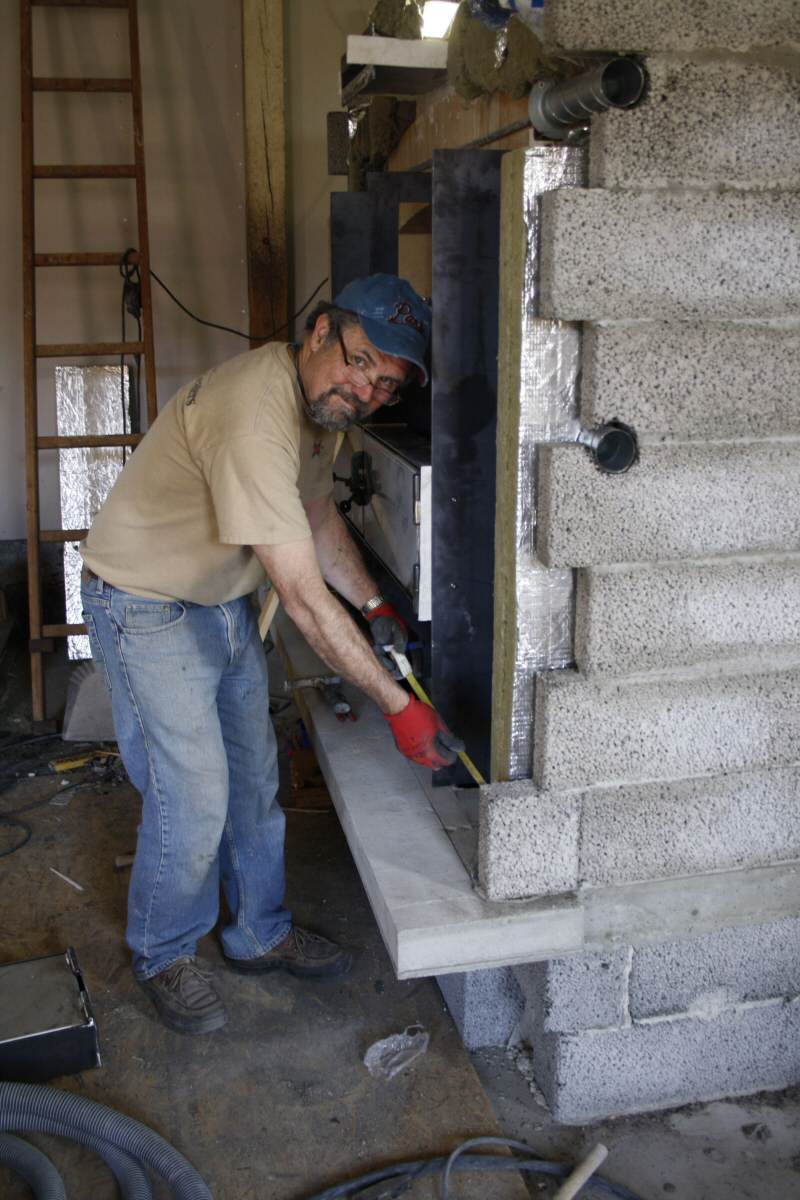

bushway earning his kronor.

Bake Oven by John Fisher

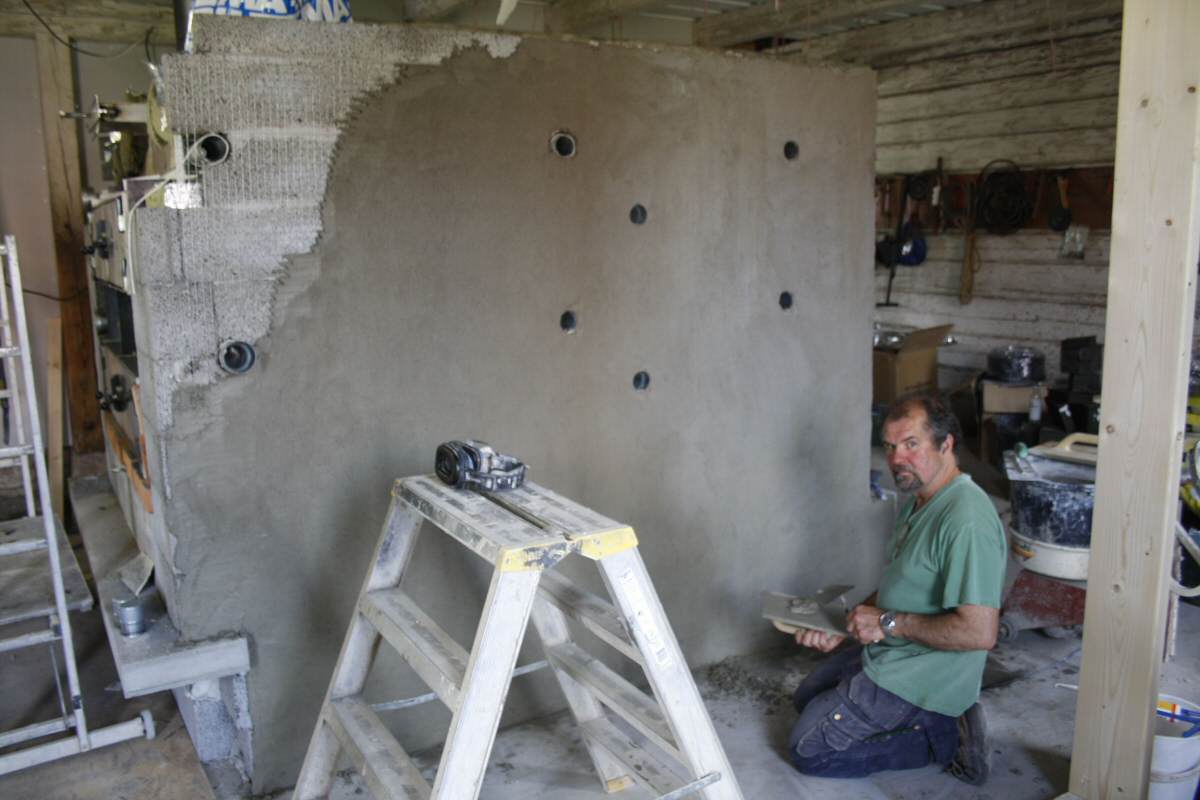

the stucco work brought the president to his knees.


Bake Oven by John Fisher
The firing end of the oven with two wood doors and an ash door.
Bake Oven by John Fisher

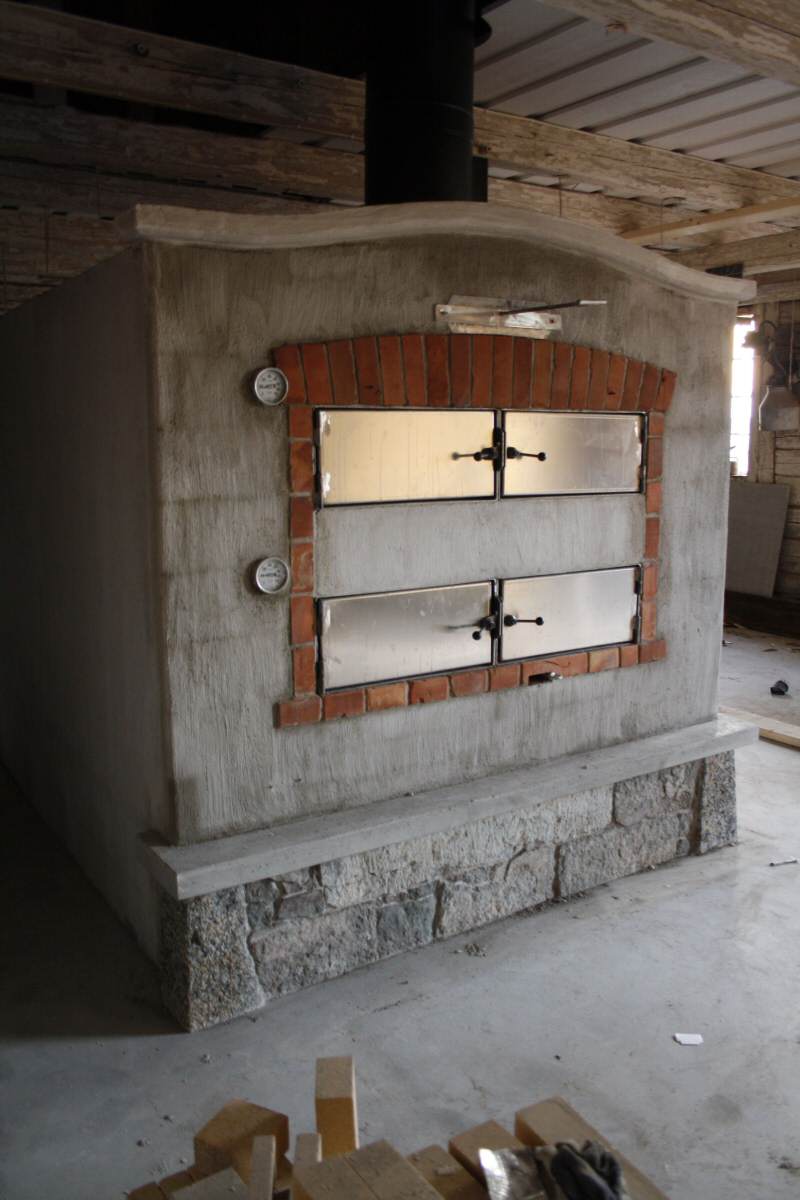

Fasade detail with used local brick and limestone and granite mimicking the original dairy b
arn with its "foderbord"

Bake Oven by John Fisher

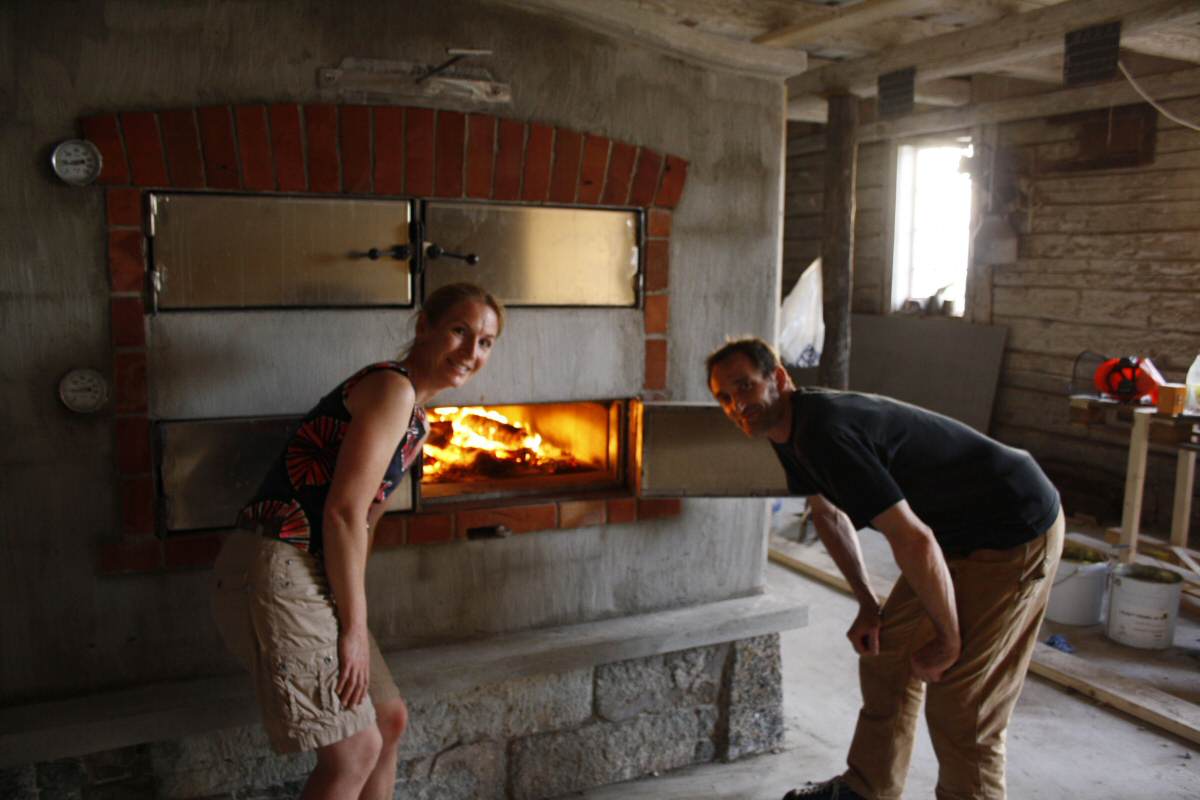

A happy customer makes a happy mason.
